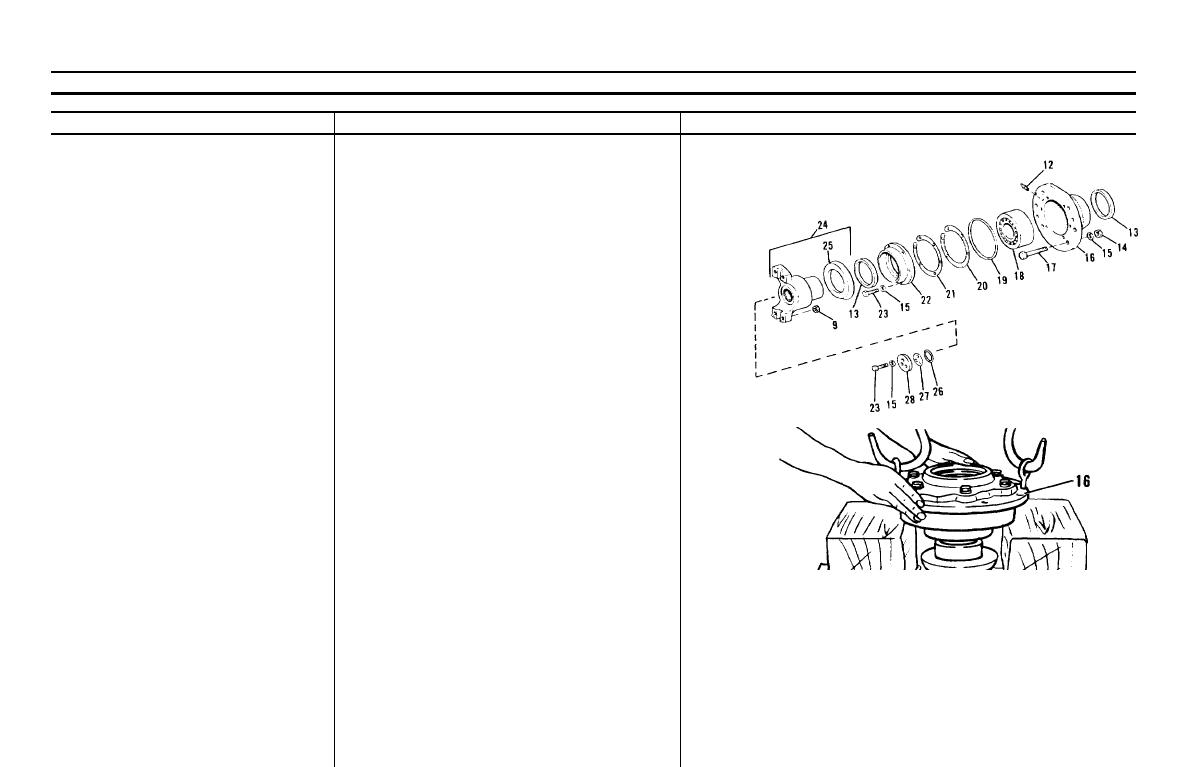

DRIVE SHAFTS DISASSEMBLY / ASSEMBLY (CONT)
(Sheet 4 of 15)
LOCATION/ITEM
ACTION
REMARKS
4.
Shim pack (27)
Remove and discard.
5.
Preformed packing (26)
Remove and discard.
6.
Yoke assembly (24) and dirt guard
a. Remove.
(25)
b. Inspect for cracks, bends, warps, etc.
c. Replace if necessary.
7.
Bearing cage (16)
a. Remove capscrews and nuts.
b. Insert 2 guide bolts.
c. Insert forcing screws and pull cage from
shaft.
d. Use hoist to pull cage from shaft. Weight
of cage is 471 lbs. (213.6 Kg).
TA099436
Go on to Sheet 5
