THROTTLE CONTROL (GOVERNOR PEDAL) REMOVAL/INSTALLATION (CONT)
(Sheet 6 of 7)
LOCATION/ITEM
ACTION
REMARKS
7.

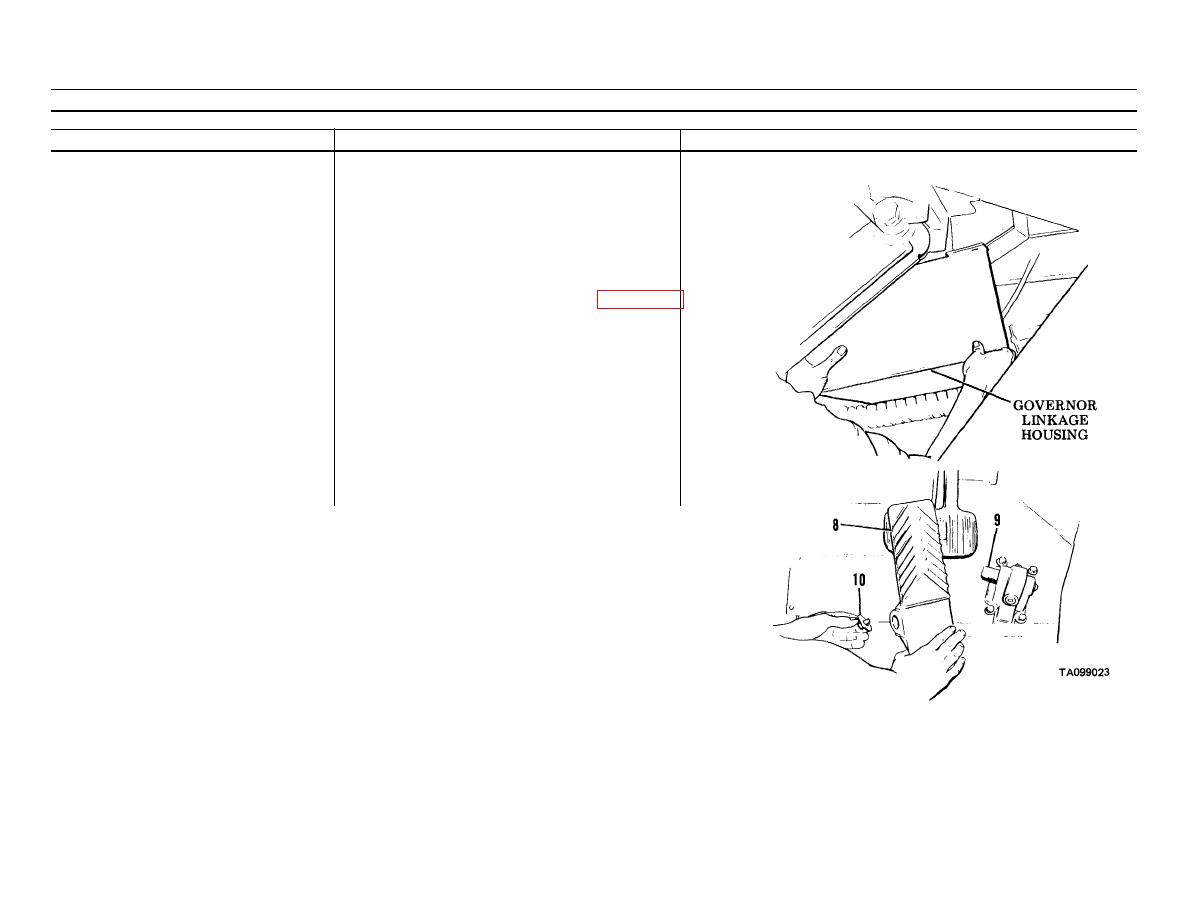

Governor linkage housing
Lift into position and install four capscrews,
8.
Treadle (8)
Install on splined shaft (9).
NOTE
Install treadle so it makes an angle of 36 -44
degrees with respect to floor. (See page 3-101.)
9.
Bolt and washer (10)
Install in end of shaft (9).
Go on to Sheet 7
