TM 10-3930-675-24-2
LOCKING PIN BUSHING REPLACEMENT - CONTINUED
0239 00
BOOM SUPPORT BUSHINGS INSTALLATION - CONTINUED
6.

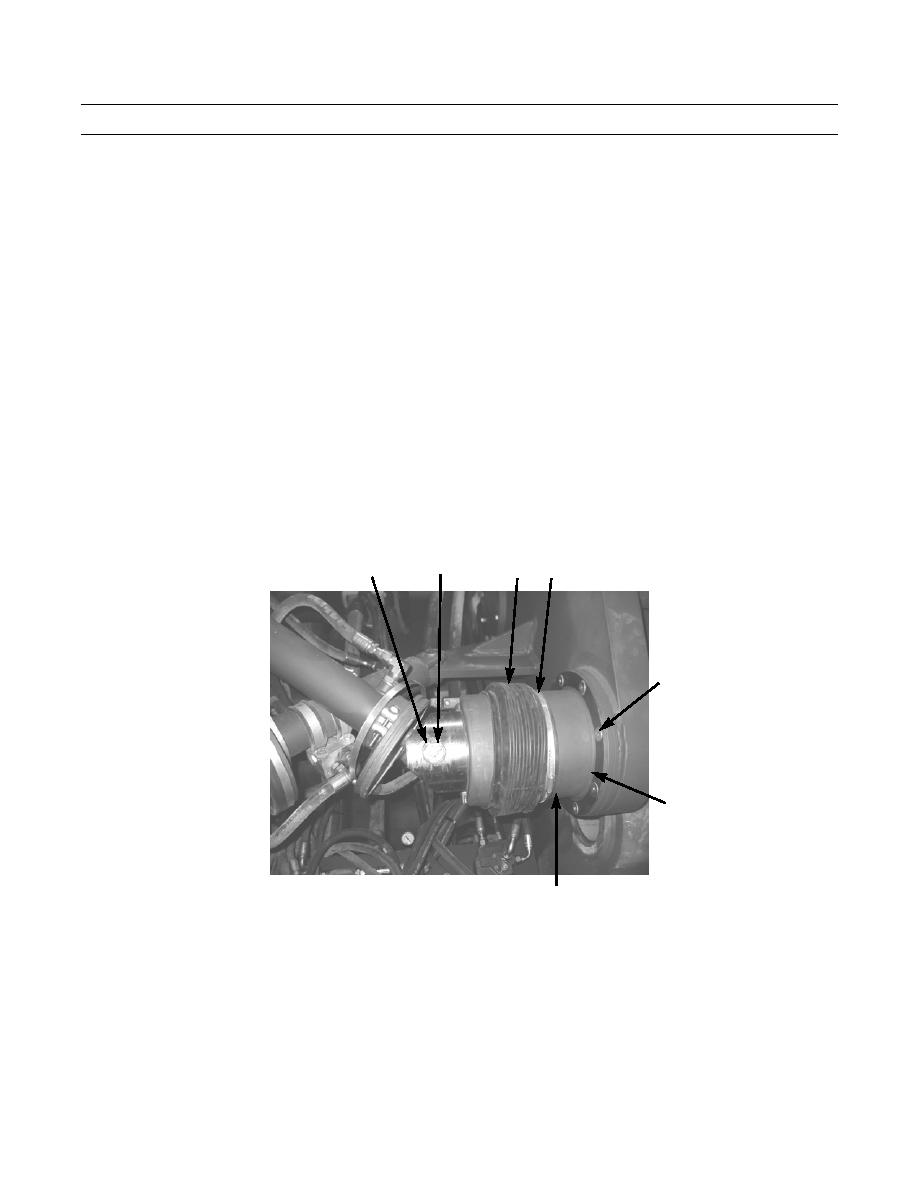

Install locking pin support (12) and retaining ring (10) on vehicle.
7.
Install eight flat socket head capscrews (9) in retaining ring (10).
8.
Install locking pin (5) into locking pin support (12).
WARNING
Use extreme caution when handling heavy parts. Provide adequate support and use assistance during
procedure. Failure to follow this warning may result in injury to personnel.
NOTE
Locking pin weighs 65 lb (29 kg).
Locking pin support weighs 35 lb (16 kg).
9.
Position locking pin (5) on cylinder end.
10.
Tap locking pin (5) into place using hammer and drift pin.
11.
Install upper snap ring (6) on locking pin (5).
12.
Slide protection bellows (7) over locking pin (5).
13.
Install large clamp (8) on protection bellows (7) on cylinder end of locking pin (5).
6 (HIDDEN)
5
7
8
9
10
434-40169
12
0239 00-7
