TM 10-3930-641-34-1
RADIATOR SPECIFICATIONS
(Sheet 1 of 1)

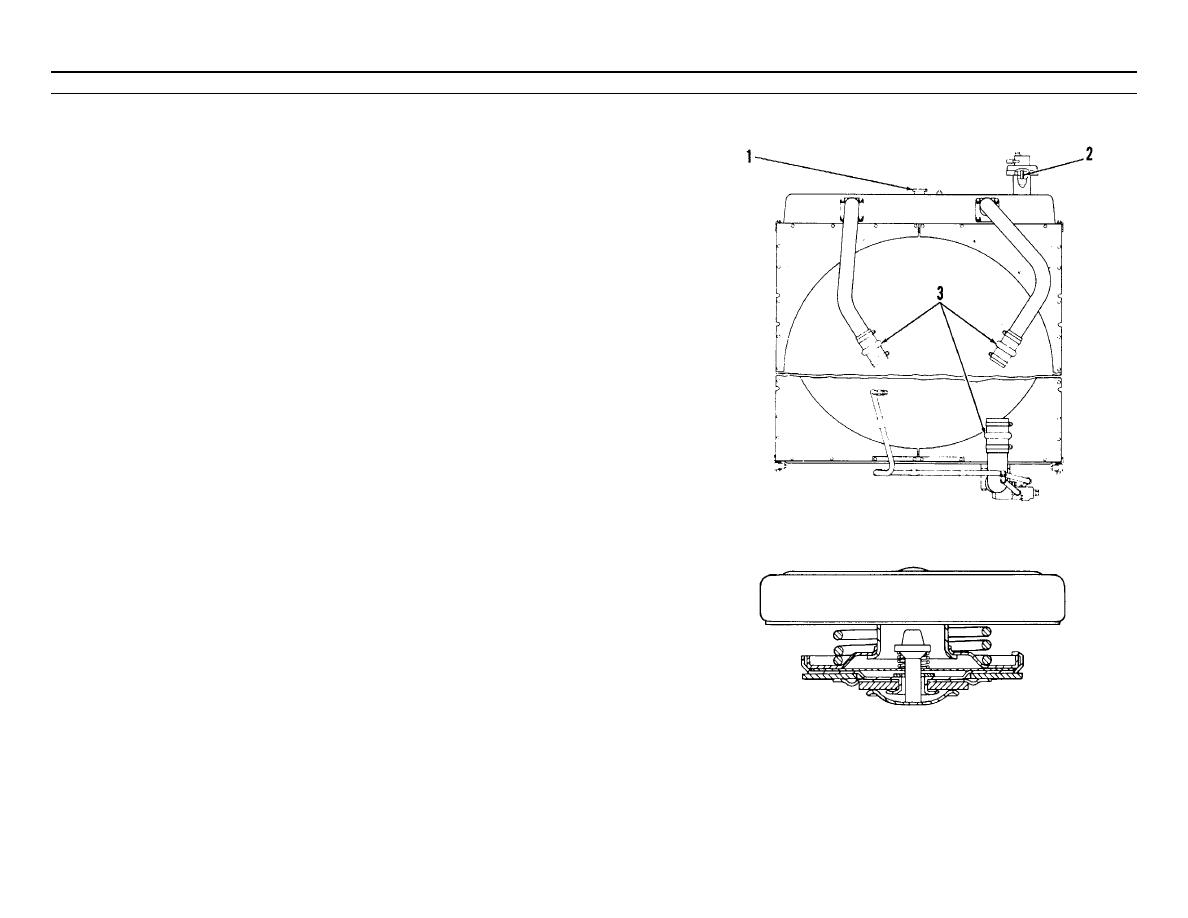

(1) 2S3080 Pressure Relief Cap:
(2) for stud for
filler cap ..........................................................40 5 lb. ft. (54 7 N m)
(3) Hump on hose to be centered between ends of two pipes.
COOLING SYSTEM
PRESSURE CAP
2S3080 Pressure Relief Cap:
Minimum pressure that makes relief
2
valve open ................................................................. 12 psi (0.84 kg/cm ) (83 kPa)
Maximum pressure that makes relief
2
valve open ............................................................... 15 psi (1.05 kg/cm ) (103 kPa)
Maximum vacuum necessary to make relief
2
valve open .................................................................. 0.6 psi (0.04 kg/cm ) (4 kPa)
TA098831
2-101
