TILT CYLINDER DISASSEMBLY/ASSEMBLY (CONT)
(Sheet 2 of 2)
LOCATION/ITEM
ACTION
REMARKS
REMOVAL
1. Retaining ring (1)
Remove from mast/vehicle frame.

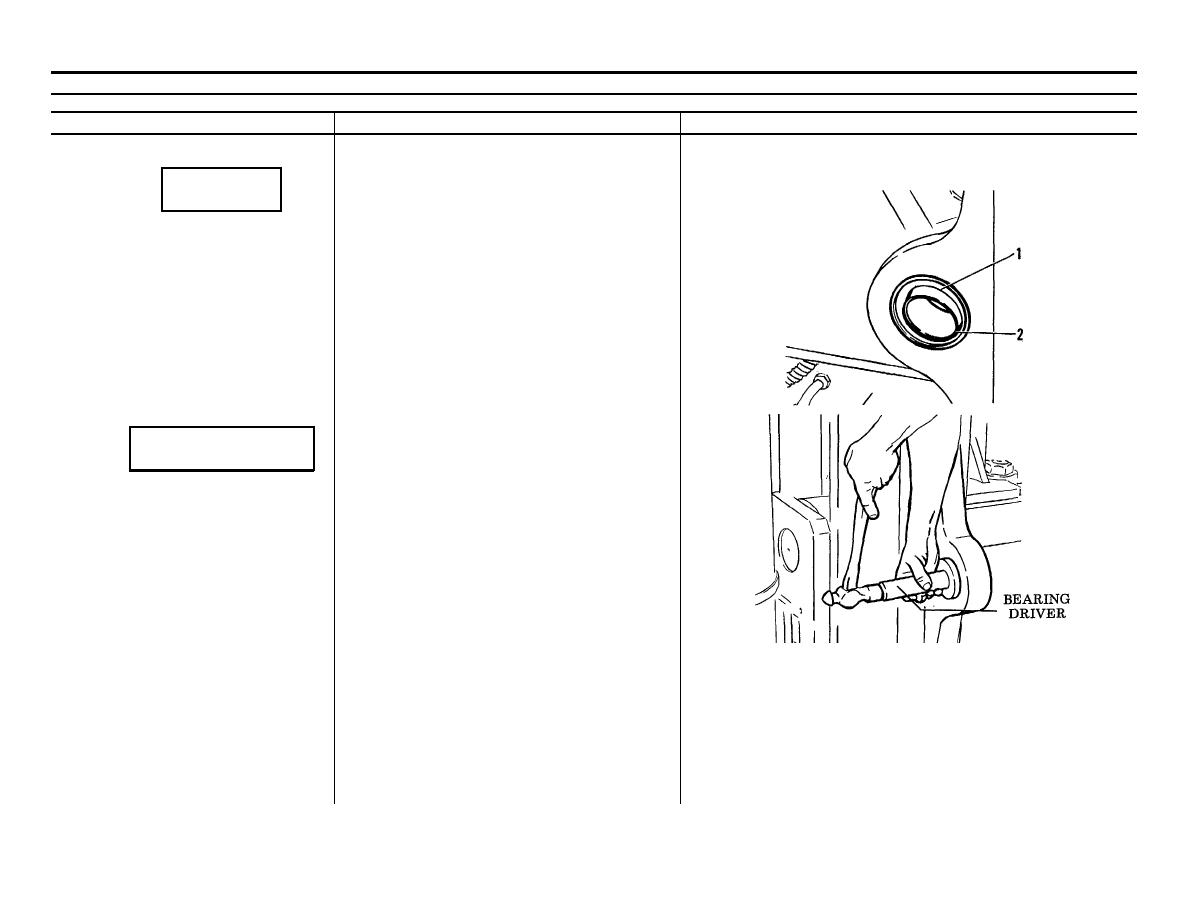

2. Bearing (2)
Remove from mast/vehicle frame, using
a bearing driver.
I
INSTALLATION
NOTE
Clean all parts.
1. Bearing (2)
Install against counterbore in mast/vehicle
frame, using suitable driver.
2. Retaining ring (1)
Install in mast/vehicle frame.
TA099169
