Table 2. Rear Junction Box X192 Wire Connections

INSTALLATION - CONT - TM-10-3930-675-20-2_292

TM-10-3930-675-20-2 Rough Terrain Container Handler (RTCH): RT 240; 53 000 Lb Capacity; 4x4 Manual
Page Navigation
232

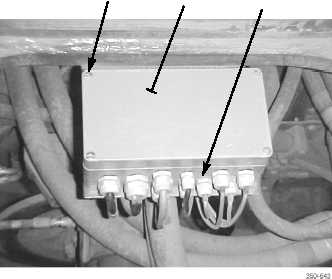

TM 10-3930-675-20-2 0103 00-5 STEERING SYSTEM WHEEL SENSOR REPLACEMENT - CONTINUED 0103 00 INSTALLATION - CONTINUED Table 2. Rear Junction Box X192 Wire Connections. 5. Install cover (17) to front (or rear) junction box (18) and tighten four screws (16). LEFT-REAR SENSOR RIGHT-REAR SENSOR Black No. 1 across from Brown Black No. 1 across from Gray Black No. 2 across from White Black No. 2 across from Black Black No. 3 across from Violet Black No. 3 across from Red Black No. 4 across from Orange Black No. 4 across from Blue Black No. 5 across from White/Black Black No. 5 across from Yellow Yellow/Green across from White/Red Yellow/Green across from Green Silver to Ground Terminal Silver to Silver 16 17 18
