TM 55-8115-202-14

REMOVAL:

STEP 1. REMOVE CAPSCREWS (2) AND

SEPARATE COUPLING FROM RECORDER.

STEP 2. REMOVE NUTS (4) AND RECORDER.

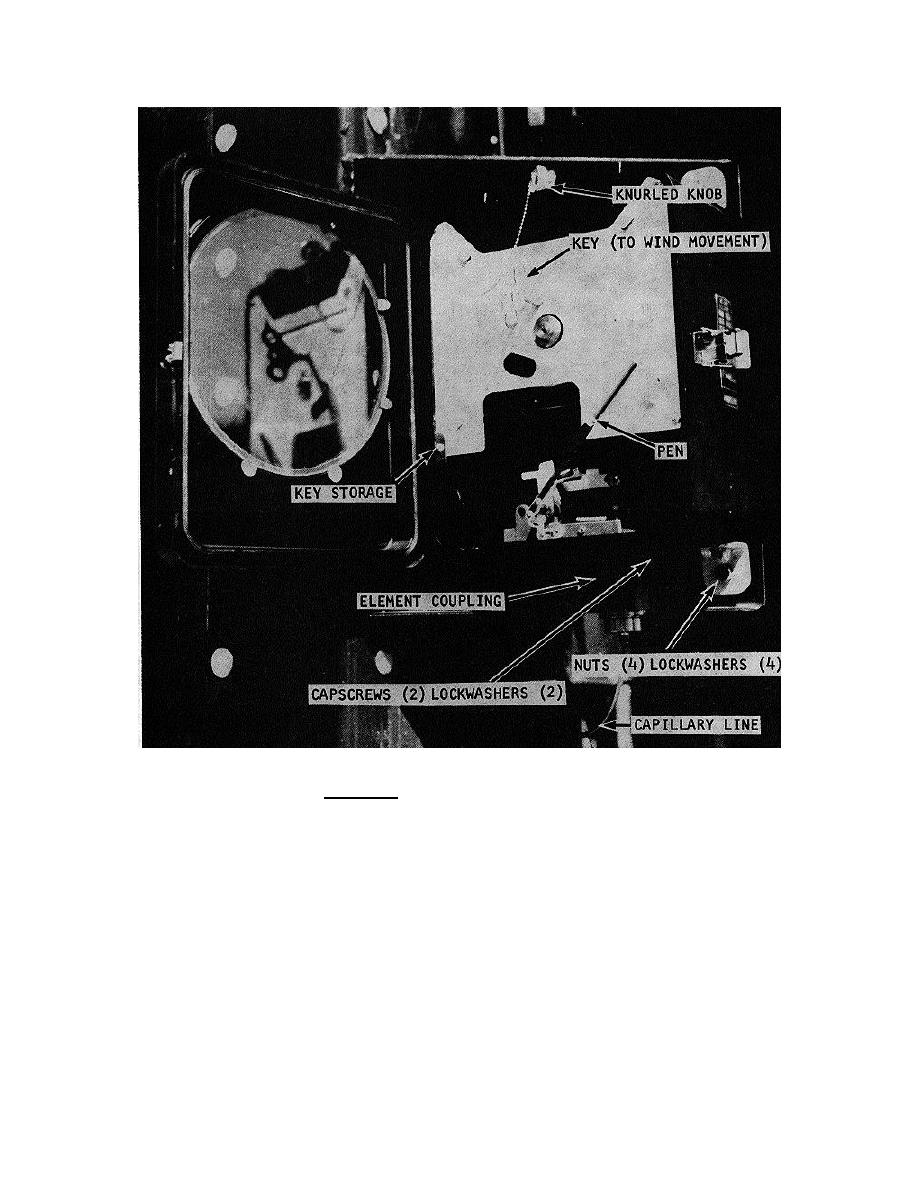

Figure 2-5. Temperature Recorder, Cover Opened.

2-8
