TM 10-3930-641-34-2
FINAL DRIVE PLANET CARRIERS REMOVAL/INSTALLATION (CONT)
LOCATION/ITEM
ACTION
REMARKS

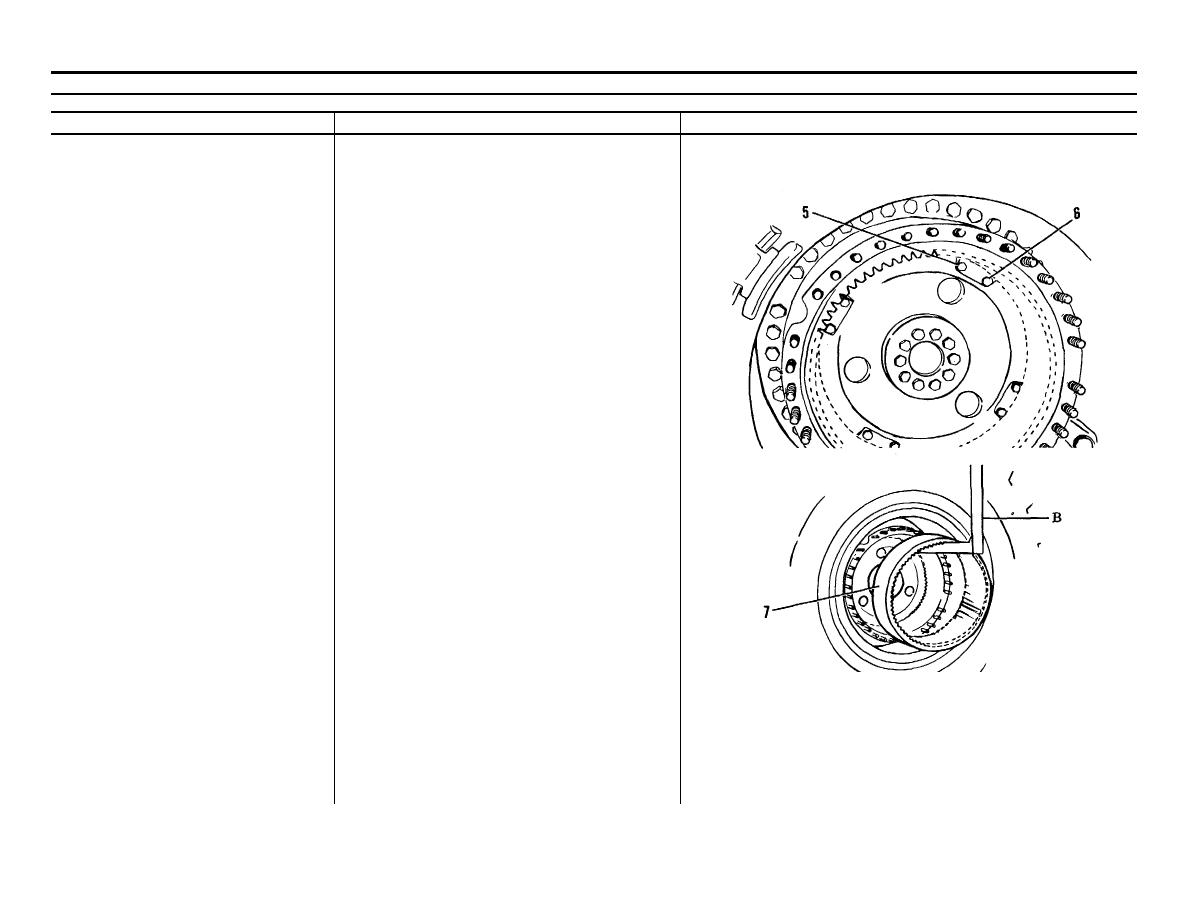

8. Retainers
Bend away from capscrew heads.
9. Capscrews (5)
Remove.
10. Retainers (6)
Remove.
11. Lifting bracket (B)
Place in position with hoist.
NOTE
Weight of ring gear is 110 lb. (50 Kg).
12. Ring gear (7)
Remove using lifting bracket.
TA099404
Go on to Sheet 4
4-256
