REMOVAL - Continued
5.

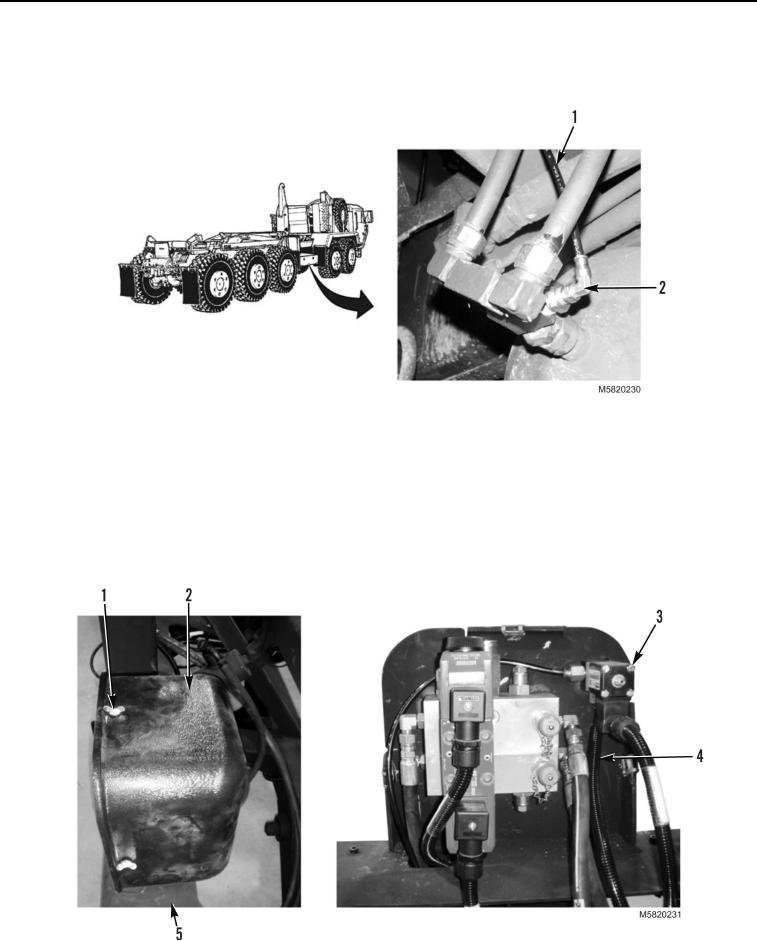

Disconnect pneumatic hose (Figure 4, Item 1) from press-lock fitting (Figure 4, Item 2).
Figure 4. PLS Air Tank Hose Removal.
Latch Actuator Hose Removal
1.
Loosen three locking screws (Figure 5, Item 1) and remove solenoid cover (Figure 5, Item 2) from stowage
assembly (Figure 5, Item 5).
2.
Remove latch actuator hose (Figure 5, Item 4) from solenoid valve (Figure 5, Item 3).
Figure 5. Latch Actuator Hose Removal from Solenoid.
