TM 10-3930-675-20-1
0020 00-23
ENGINE TEMPERATURE SENSORS AND CIRCUITS TROUBLESHOOTING - CONTINUED
0020 00
Table 8. Error Code 1213 - Oil Temperature Sensor Circuit Failure Troubleshooting Procedures - Continued.
MALFUNCTION
TEST OR INSPECTION
CORRECTIVE ACTION
Error Code 1213 - Oil Temperature Sensor
Circuit Failure - Continued
4. Place ignition switch in OFF
position
and
disconnect
engine harness from oil
pressure/temperature sensor.

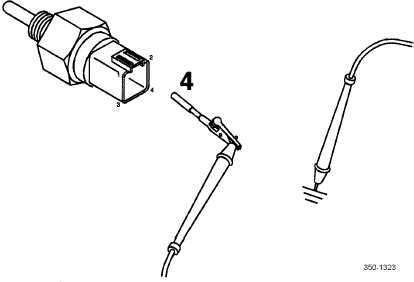

5. Measure resistance from pin 4
(or D) of oil pressure/
temperature sensor to engine
block ground. Resistance
should be greater than 100k
ohms.
If resistance is not as specified,
replace oil pressure/temperature
sensor (WP 0093 00).
6. Place ignition switch in OFF
position. Disconnect engine
harness from oil pressure/
temperature
sensor
and
disconnect sensor harness
connector from engine ECU.
Perform
the
following
resistance checks:
If engine harness requires
replacement, notify SRA.
USE TEST LEAD KIT P/N 3822917
>100K OHMS
