TM 10-3930-675-20-1
0025 00-10
ENGINE BATTERY VOLTAGE CIRCUITS TROUBLESHOOTING - CONTINUED
0025 00
Table 2. Error Code 1441 - Unswitched Battery Supply Circuit Failure Troubleshooting Procedures - Continued.
MALFUNCTION
TEST OR INSPECTION
CORRECTIVE ACTION
Error Code 1441 - Unswitched Battery Supply
Circuit Failure - Continued

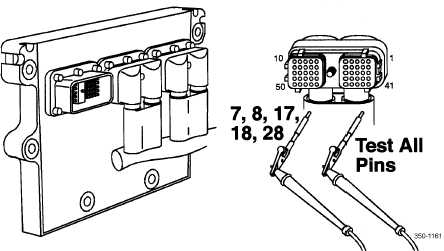

e. Measure resistance from
OEM harness connector pin
28 to all other pins in
connector except pins 7, 8,
17, and 18.
>100K OHMS
USE TEST LEAD KIT P/N 3822758
